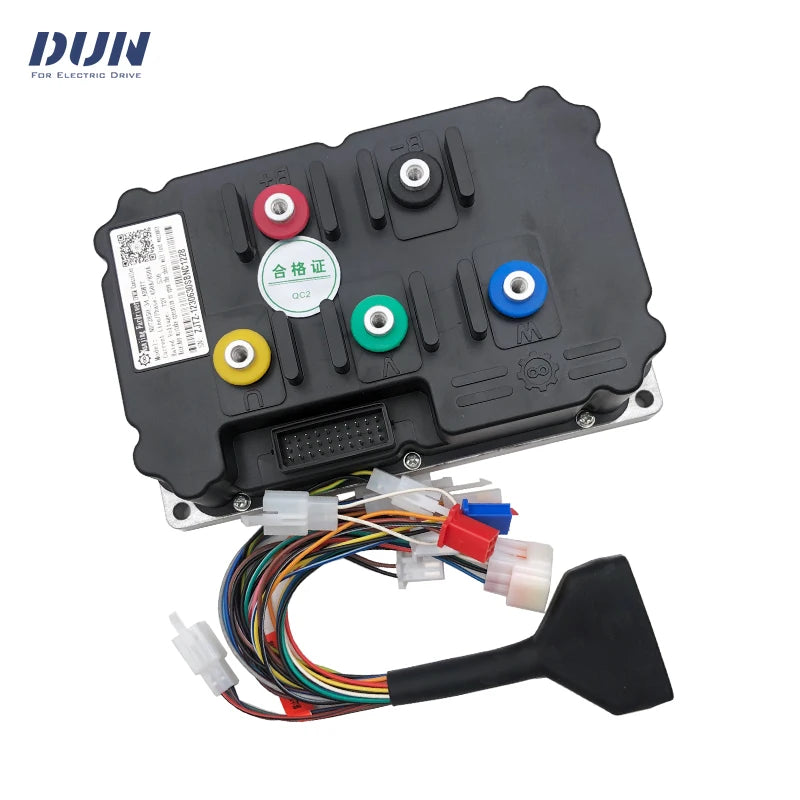

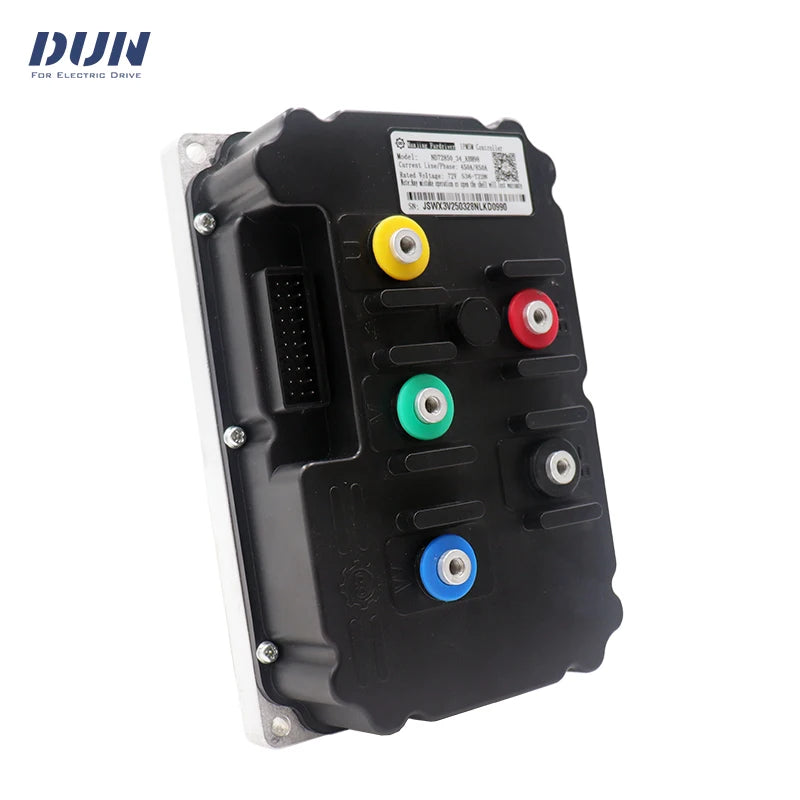

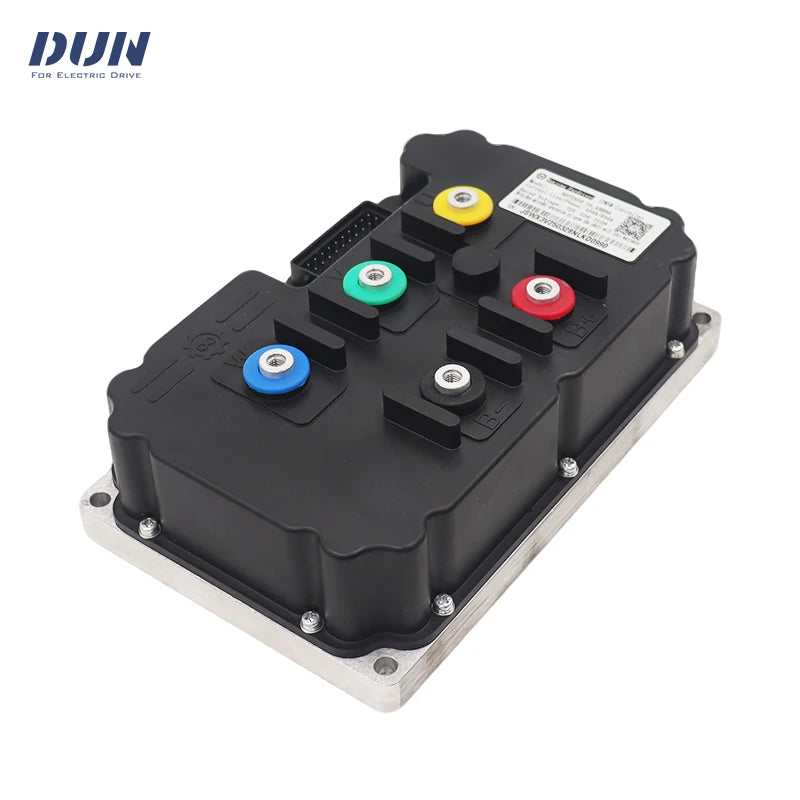

FarDriver ND72850 Phase 850A Sine Wave Far Driver 72850 Controller with DKD Display Throttle for 8000KW Electric Motorcycle ATV
FarDriver ND72850 Phase 850A Sine Wave Far Driver 72850 Controller with DKD Display Throttle for 8000KW Electric Motorcycle ATV
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Matched Motor Power: 6000W-8000W
Model: ND72850+Display+Throttle
Origin: Mainland China
Speed Signal: one-lin(YXT)
FarDriver ND72850 Phase 850A Sine Wave Far Driver Controller with DKD Display T08 Throttle for 8000KW Electric Motorcycle ATV

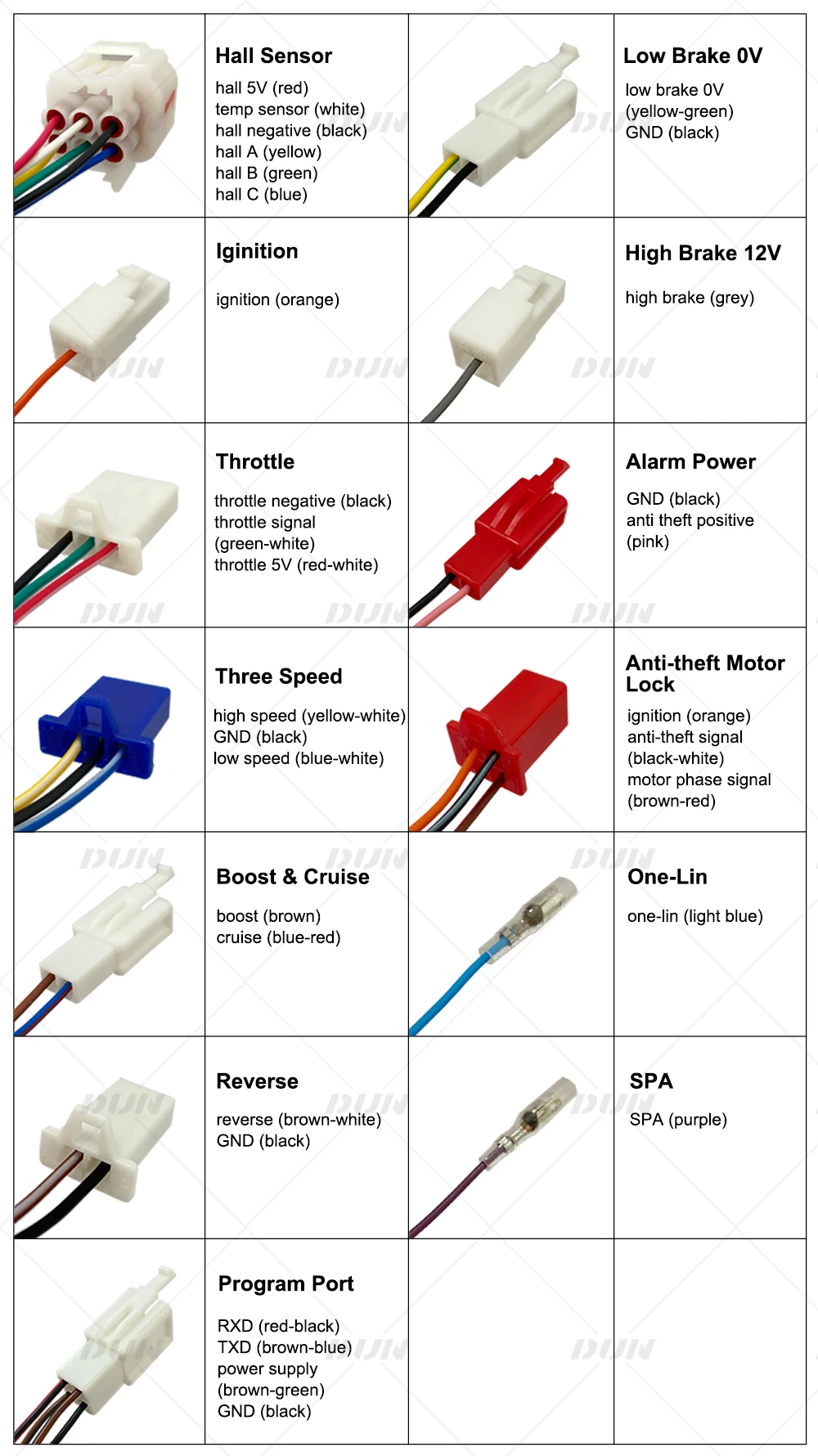

The default function for Fardriver controller :
Hall plug, Throttle signal (0-5V), Ignition, Speed Signal Meter, High Brake(12v), Three Speed, Temp Sensor, Reverse, Low Brake(0v), Flux Weakening, Anti-Theft, Boost, Cruise, Self Learning, Program Port.
NOTE: DKD display and T08 throttle are not plug and play with the controller, you need to wire them yourself.

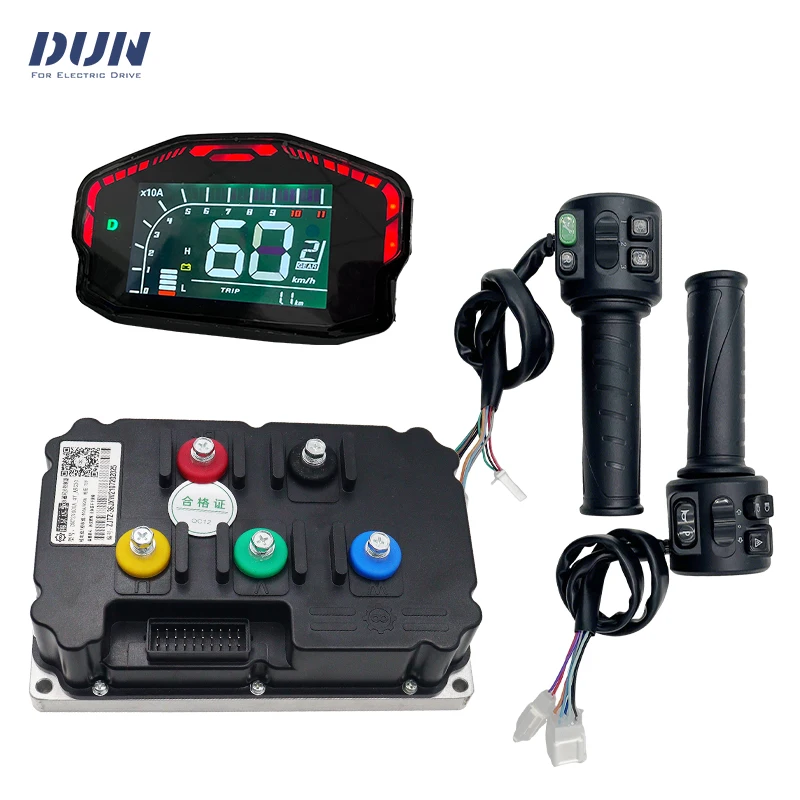

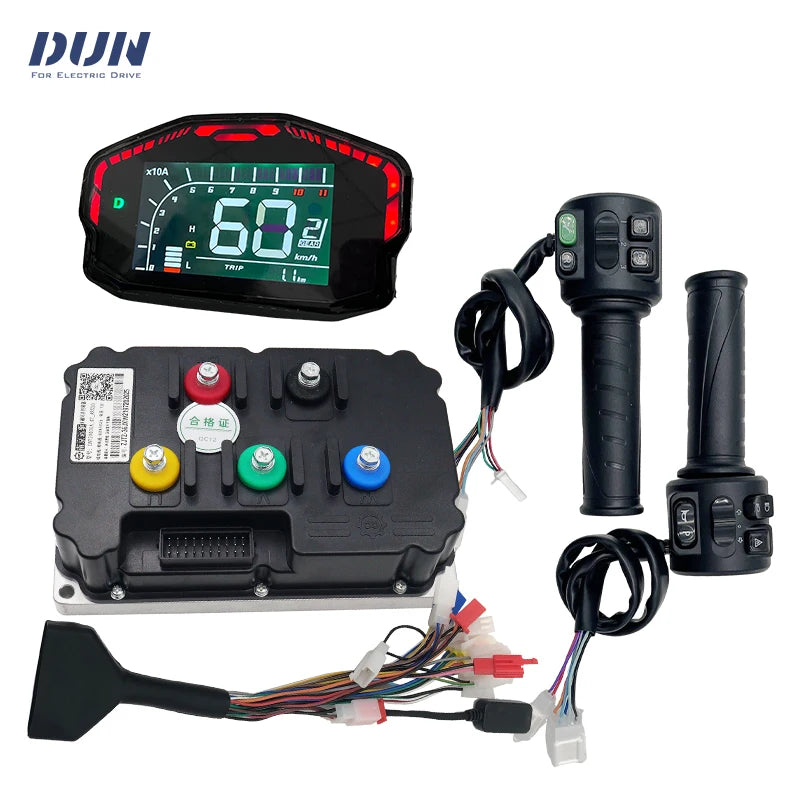

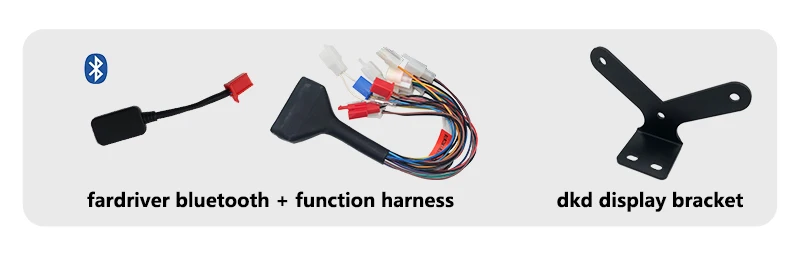

Package Including
1 pc x FarDriver ND72850 Controller
1 pc x Bluetooth Adapter
1 pc x DKD Display with bracket
1 set x T08 Throttle
Product Description
ND72850/ND84850/ND96850 are sine wave controller with waterproofing grade IP67, suitable for 6-8kw motors.
For ND72850, the peak voltage is 88V;
For ND84850, the peak voltage is 100V;
For ND96850, the peak voltage is 115V.
It's hall version (as default), suitable for hall motors.
*ND72850/ND84850/ND96850 do not come with heat sinks.
Controller Specification
ND72850 is Hall version by default, suitable for Hall motors.
1. Model: ND72850
2. Working Communication: Hall Sensor
3. Available Rated Battery Voltage: 48V/60V/72V
4. Peak Battery Voltage: 88V
5. Available Motor Power: 6000W - 8000W
6. Defaut Throttle Working Voltage: 0V - 5V
7. Peak DC Current: 450A
8. Peak Phase Current: 850A
9. Mosfets Detail: 36 FET
10. Weight: 3.5kgs
11. Installation Size: 222mm * 142mm * 71mm
12. Controller Design: Sine Wave BLDC
13. Case Material: Aluminum
14. Support Programmable
15. Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV

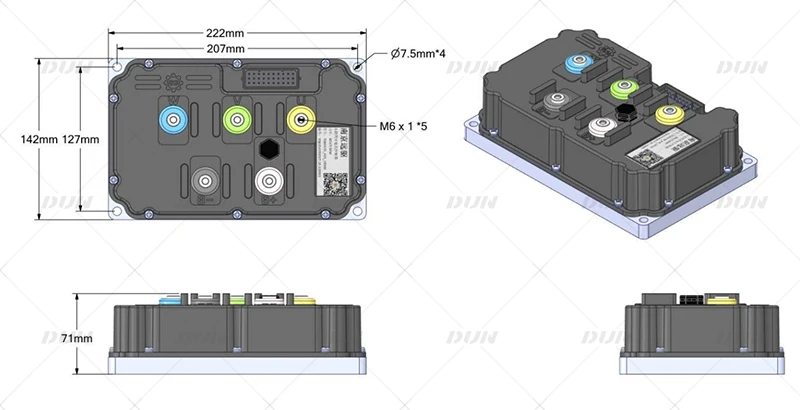

Controller Drawing & Wiring

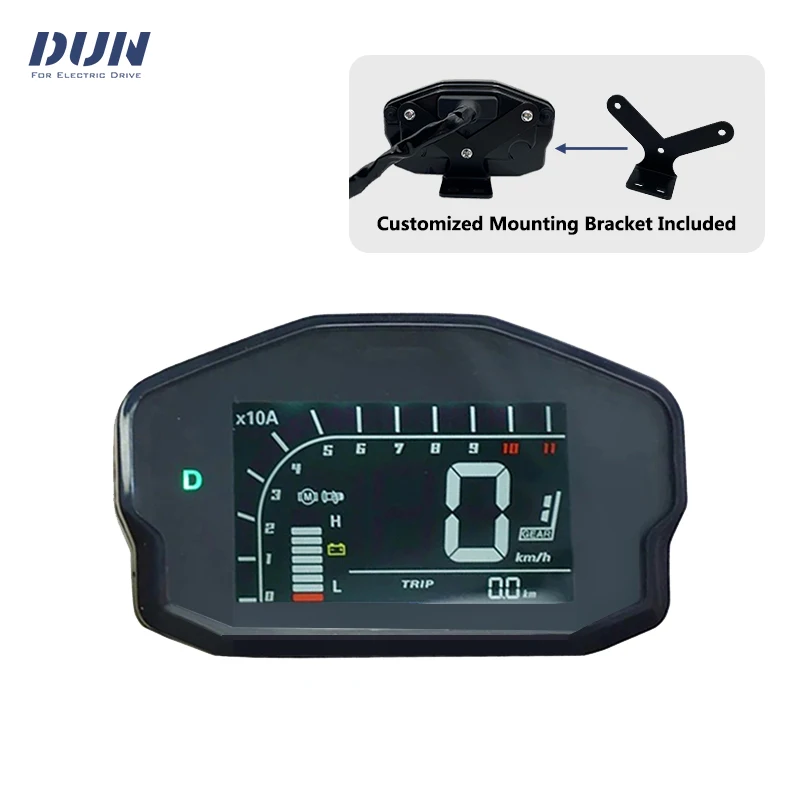

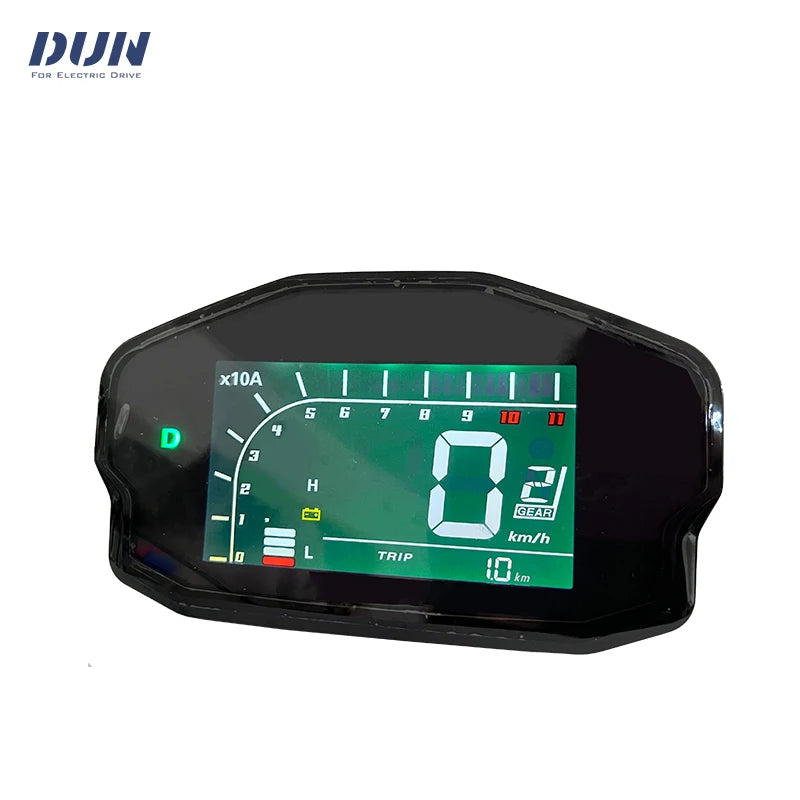

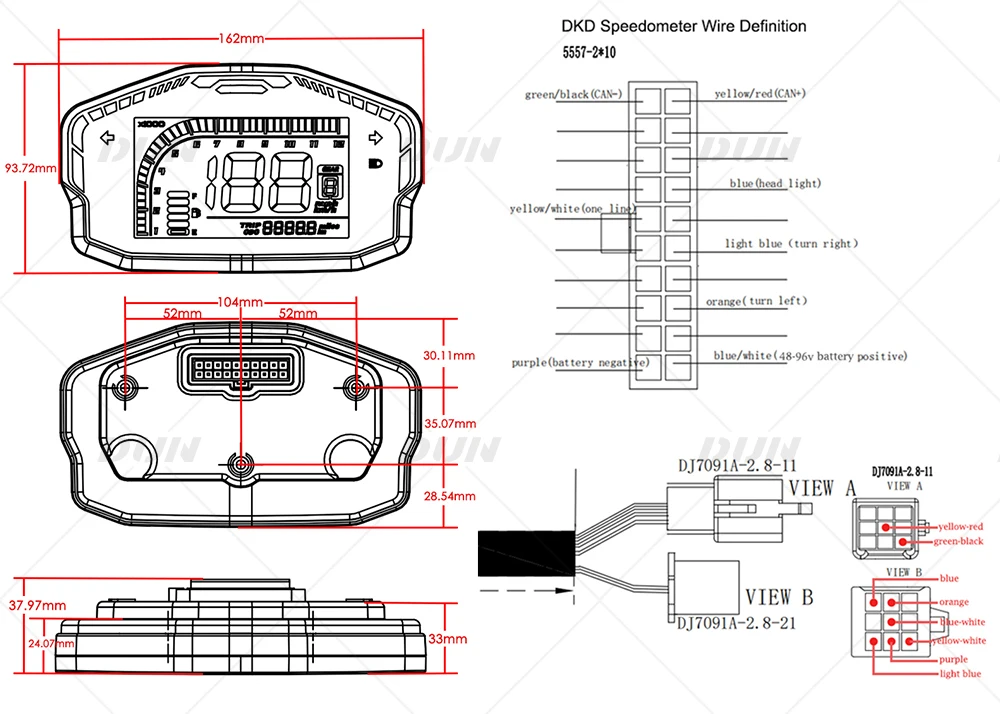

DKD Display Specification
Displays data: Speed KMH/MPH, DC current, Battery Level, Trip Distance, Fault Display, Head Light, Turning Light, Gear Display.

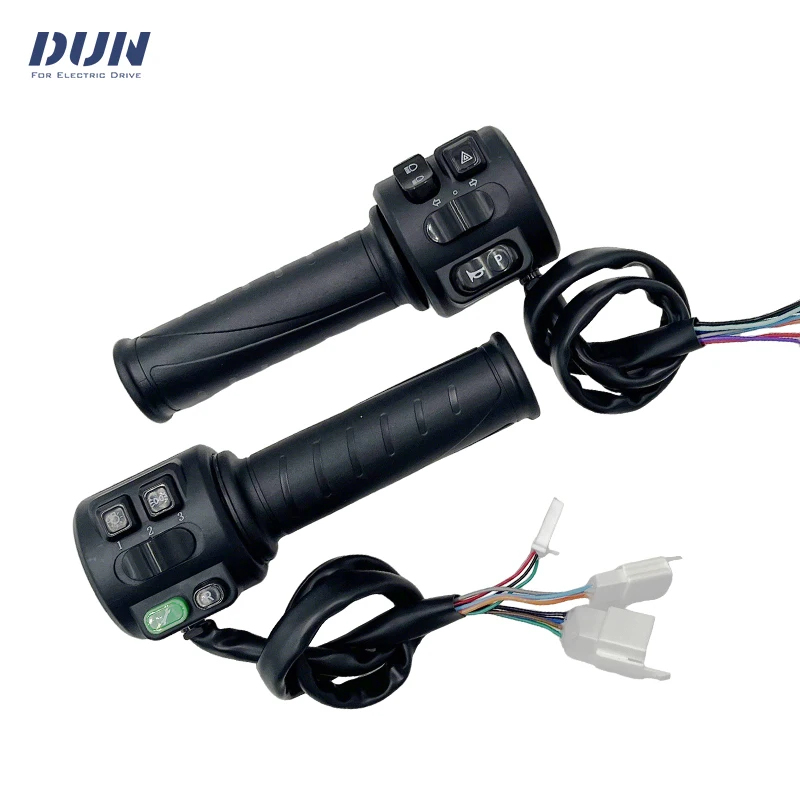

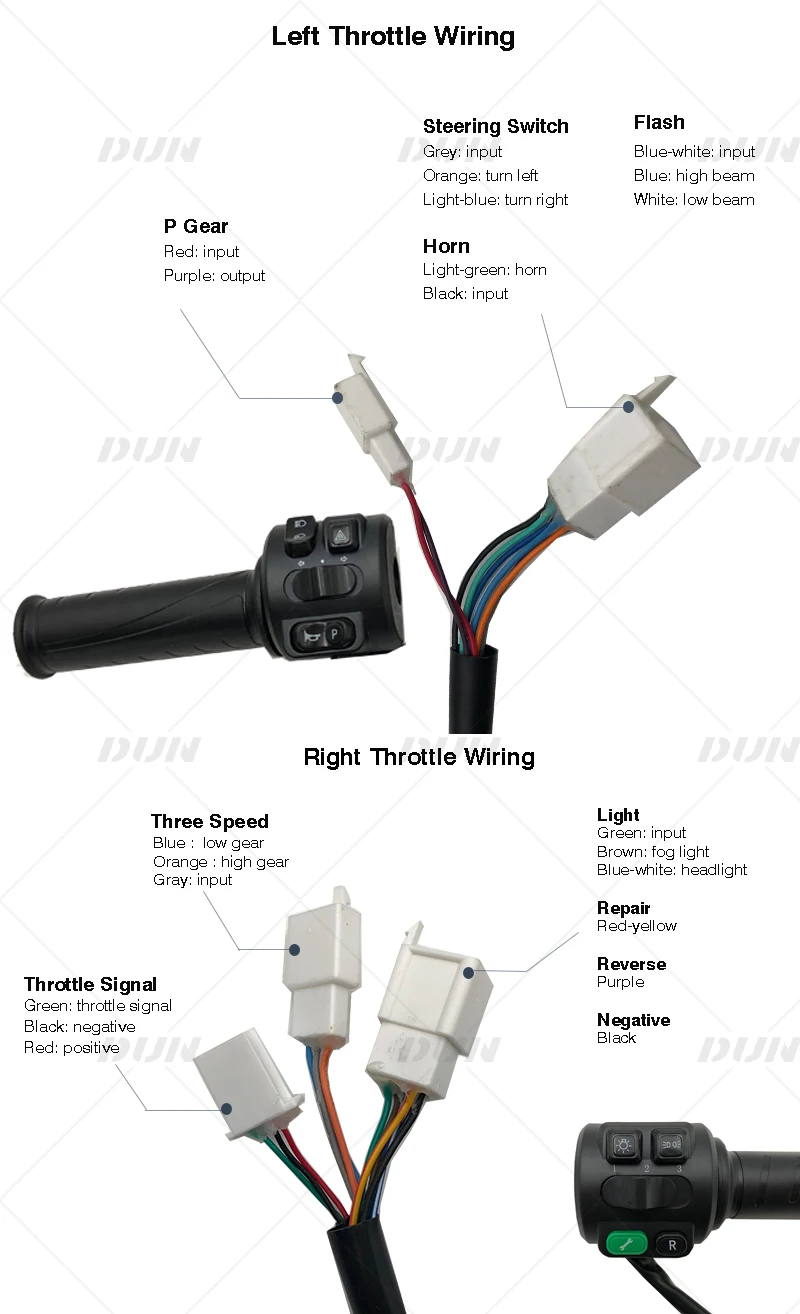

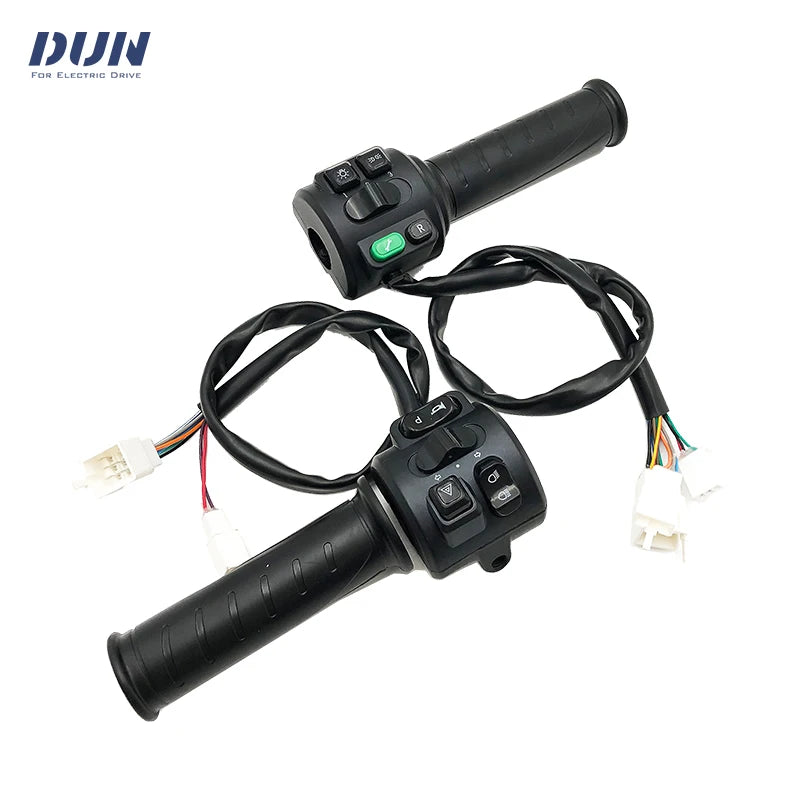

T08 Throttle Specification
Functions: Three Speed, P Gear, Reverse, One Click Repair, Left Turn Signal, Right Turn Signal, Headlight, Horn, High Beam, Low Beam.

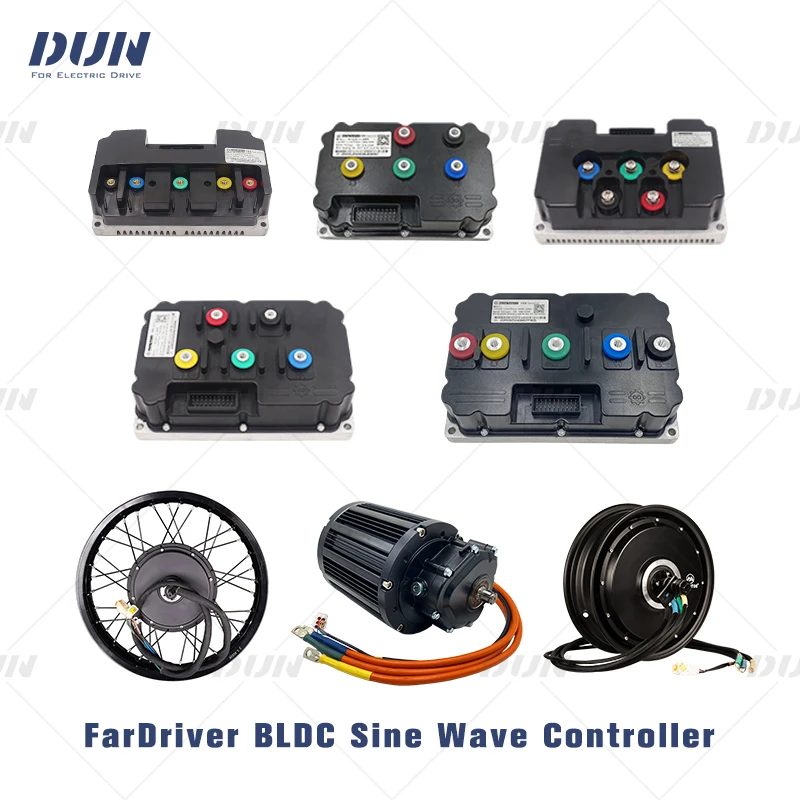

More Products
