1000W-3000W 72V Electric Moped Motorcycle Controller Fardriver ND72200 ND72260 ND72300(S12) E-Scooter FOC Sinewave Controller
1000W-3000W 72V Electric Moped Motorcycle Controller Fardriver ND72200 ND72260 ND72300(S12) E-Scooter FOC Sinewave Controller
SPECIFICATIONS
Brand Name: XPMOTOR
High-concerned chemical: None
Origin: Mainland China

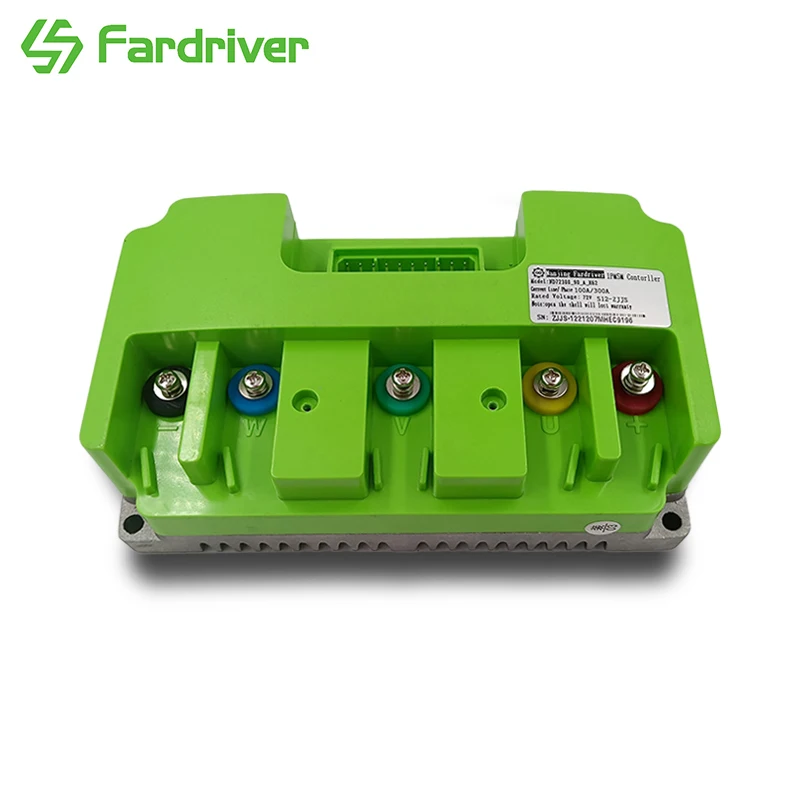

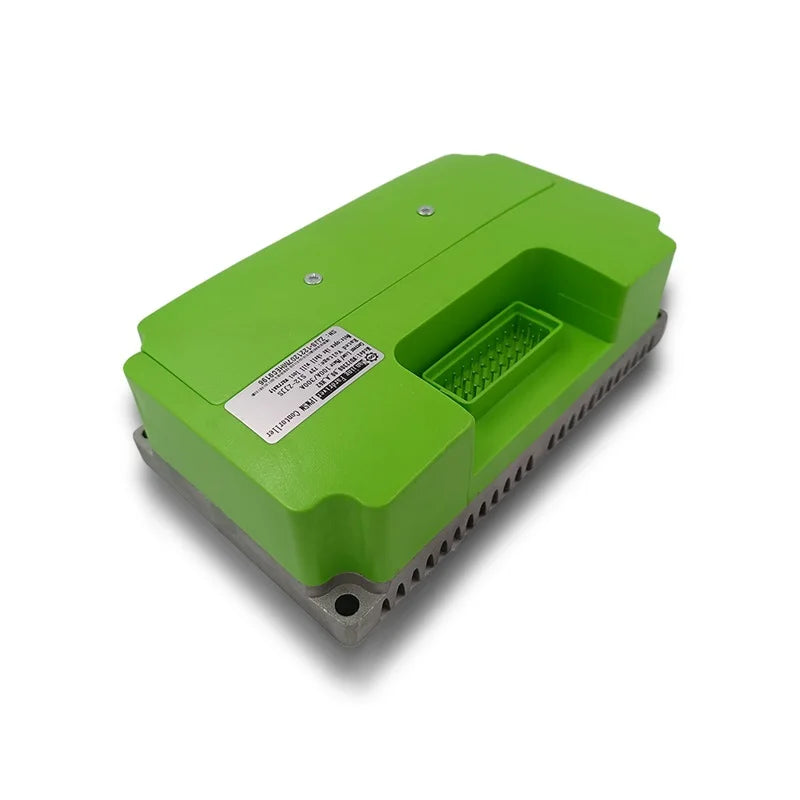

Electric Scooter BLDC Controller Fardriver ND72200 ND72260 ND72300(S12)

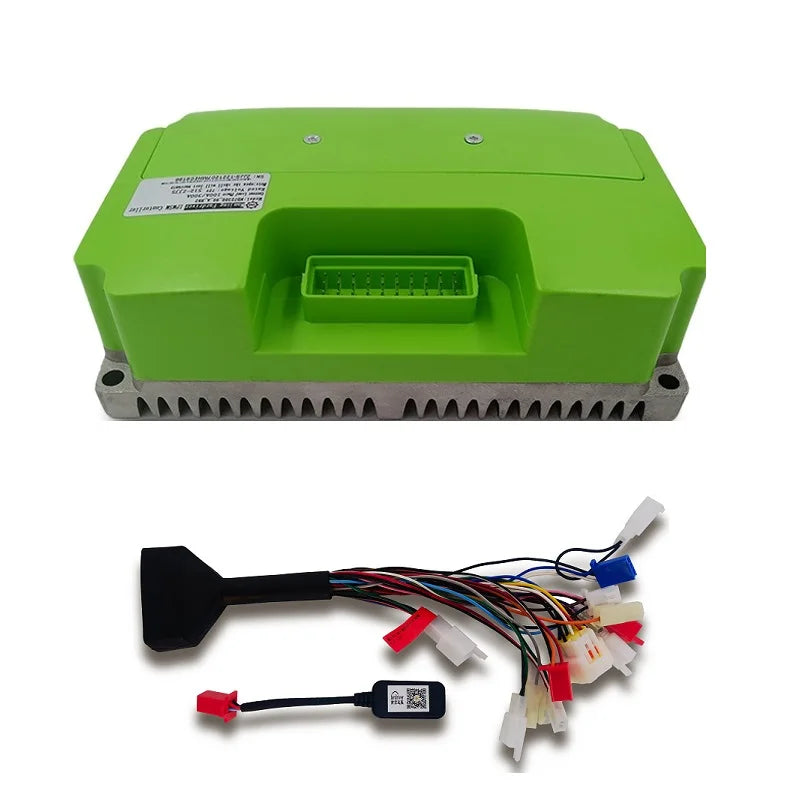

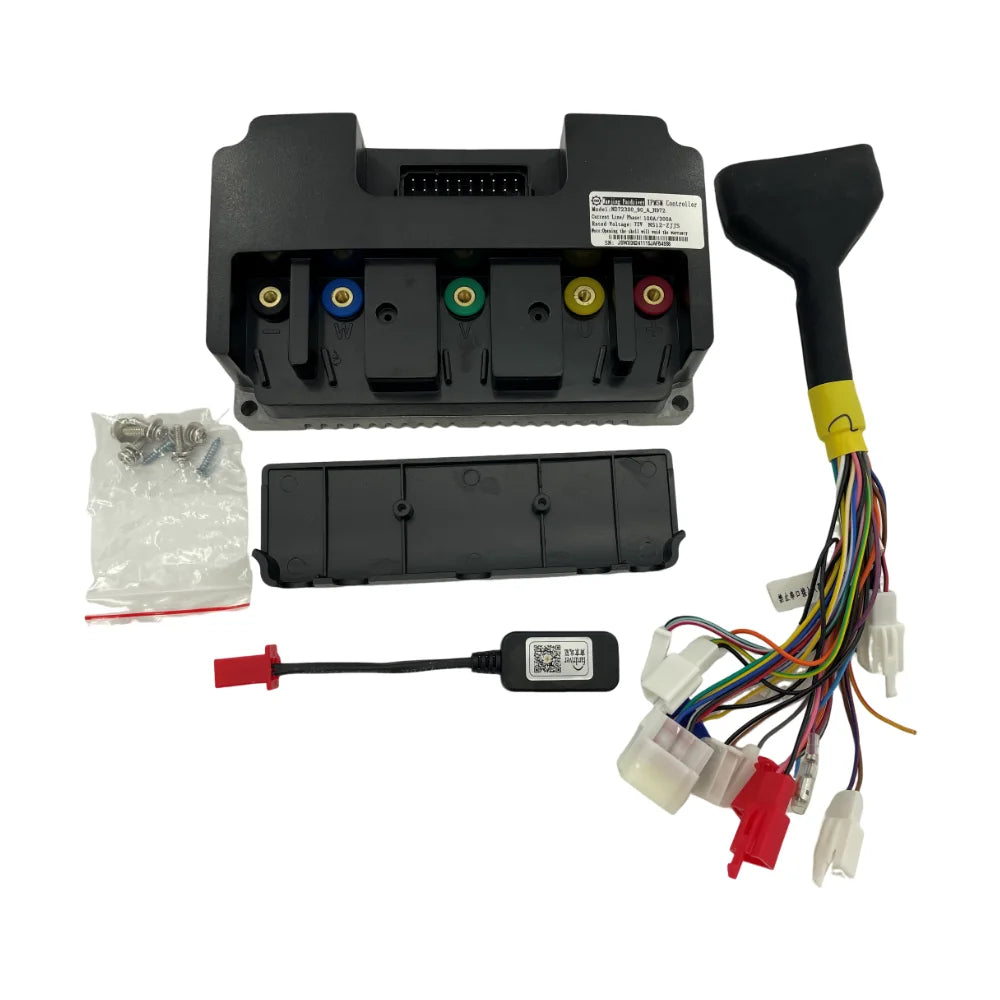

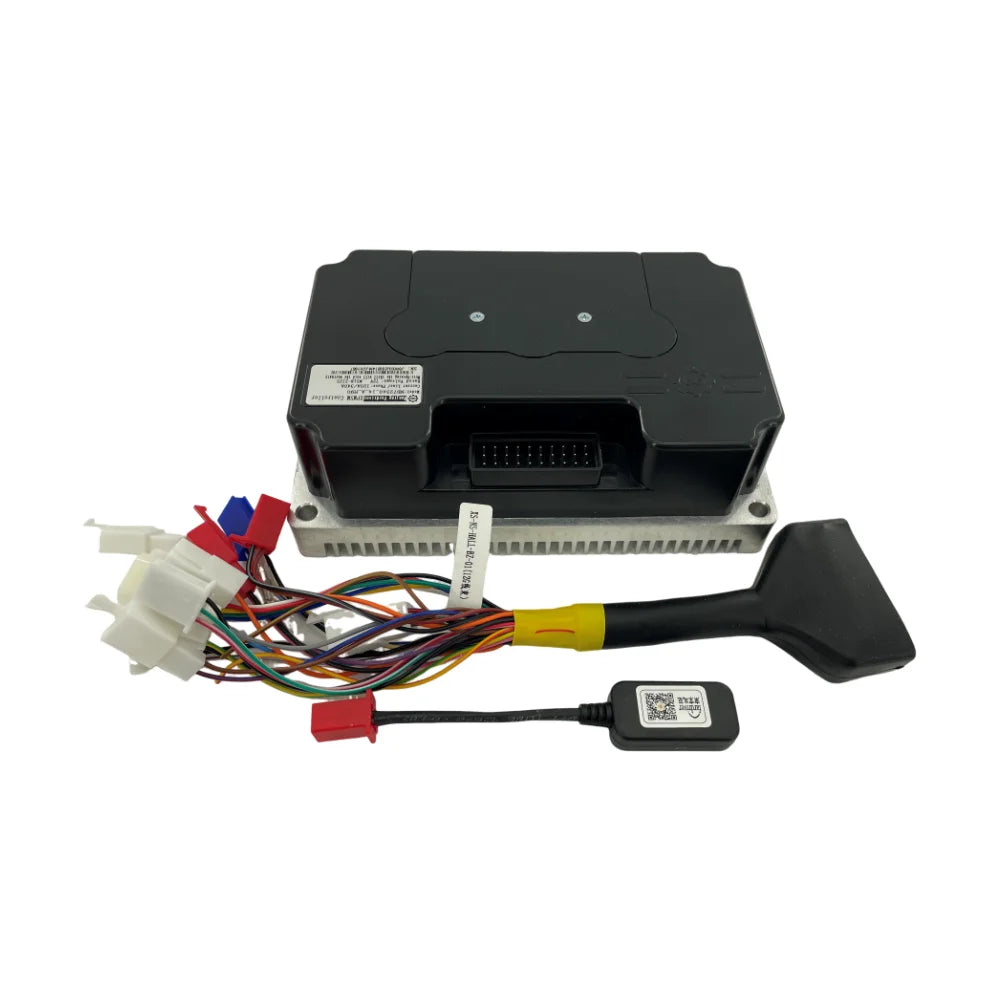

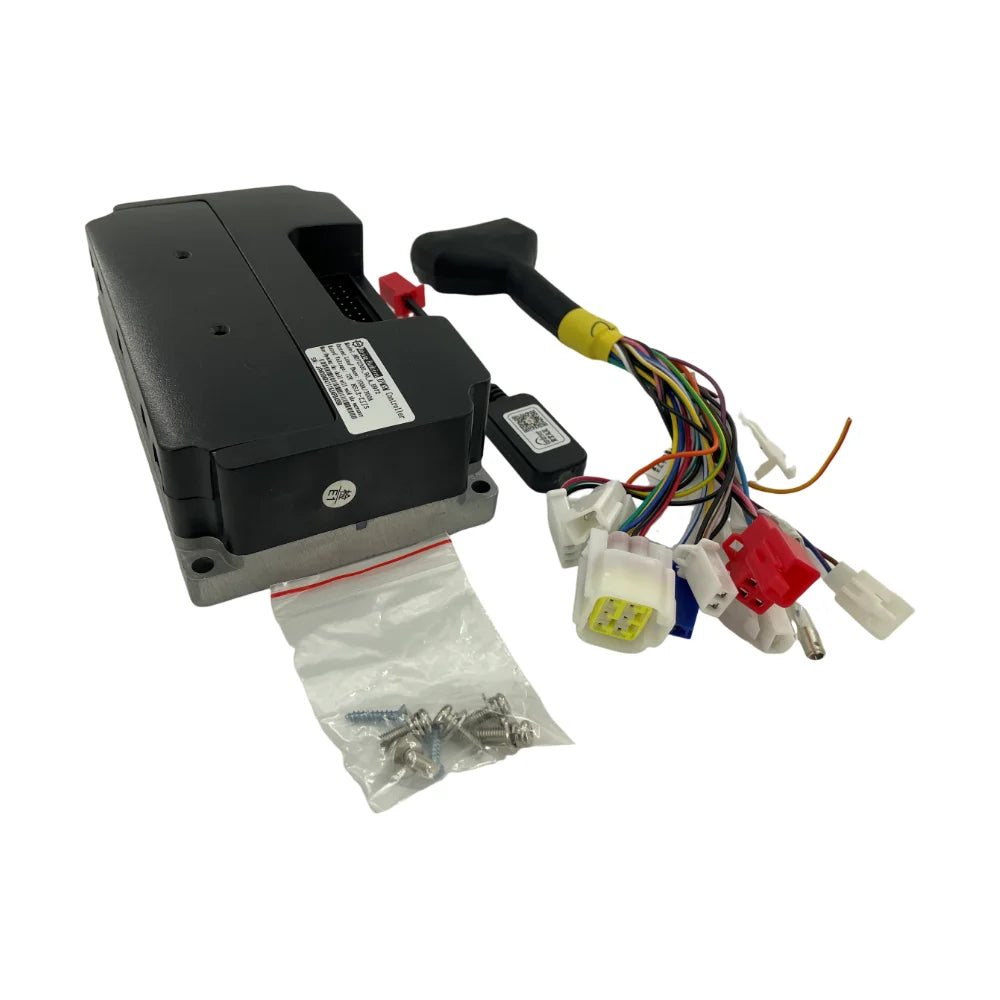

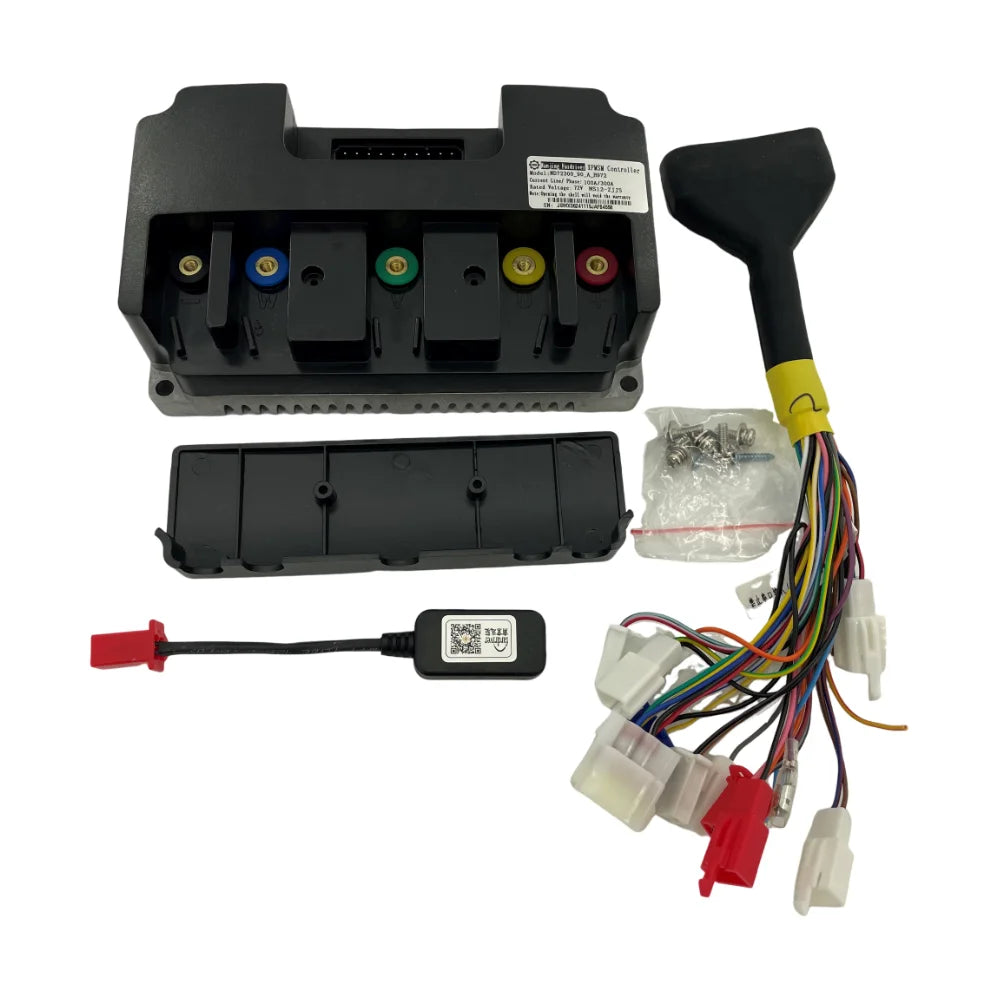

Combo:
1 piece Controller (Random Color)
1 piece Bluetooth module for Cell Phone

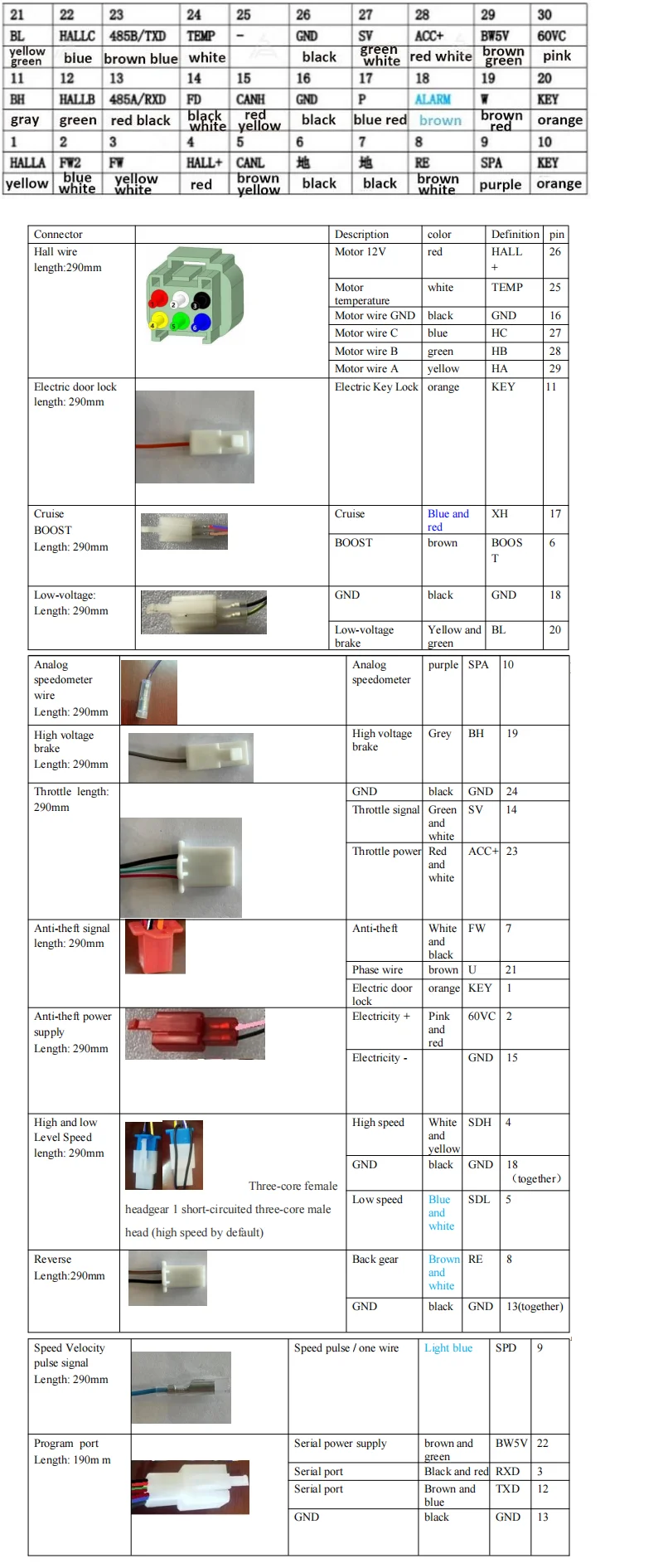

1 piece Wiring
1 piece Software(Will be sent by Email)
Key Features
1). All the raw materials are imported, using high-performance Moss tube

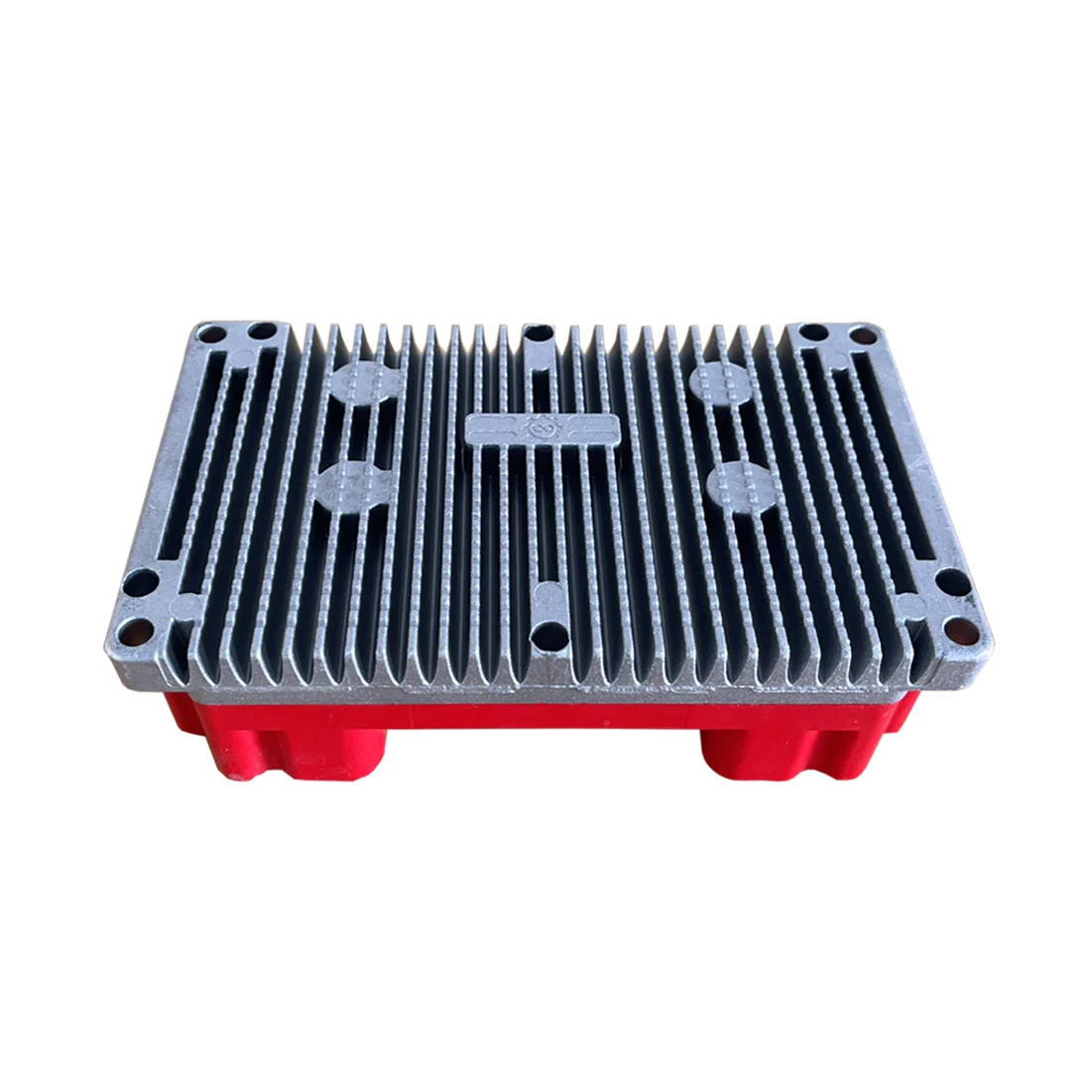

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With self-learning function, excellent commonality
6). The app compatible with Android and Apple
7). With flux weakening function.(The product does not contain magnetism)
ND72200
Main Specification:
1. Model Number: ND72200
2. Max. Bus Current: 50A
3. Max. Phase Current: 200A
4. Working Voltage: 48V/60V/72V
5. Peak voltage: 88V
6. Compatible Motor Power: 500-1200W
7. Size: 174mm*102mm*52mm
ND72260
Main Specification:
1. Model Number: ND72260
2. Max. Bus Current: 80A
3. Max. Phase Current: 260A
4. Working Voltage: 48V/60V/72V
5. Peak voltage: 118V
6. Compatible Motor Power: 1000W-2000W
7. Size: 174mm*102mm*52mm
ND72300
Main Specification:
1. Model Number: ND72300
2. Max. Bus Current: 100A
3. Max. Phase Current: 300A
4. Working Voltage: 48V/60V/72V
5. Peak voltage: 118V
6. Compatible Motor Power: 1000W-3000W
7. Size: 174mm*102mm*52mm
P.S.

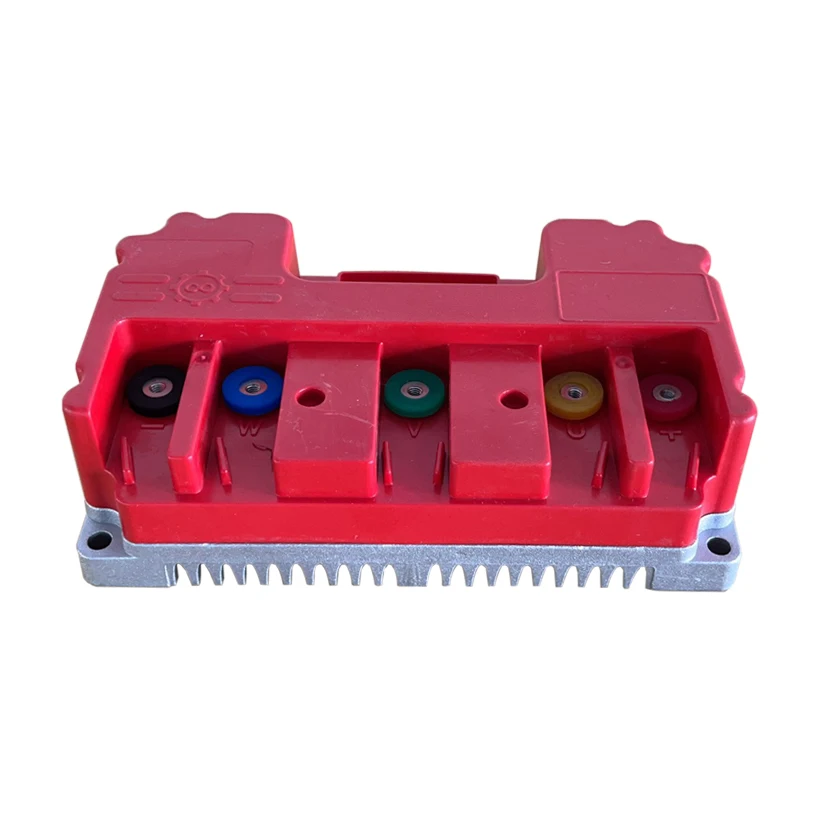

1. The controller colors are blue and black, randomly sent.

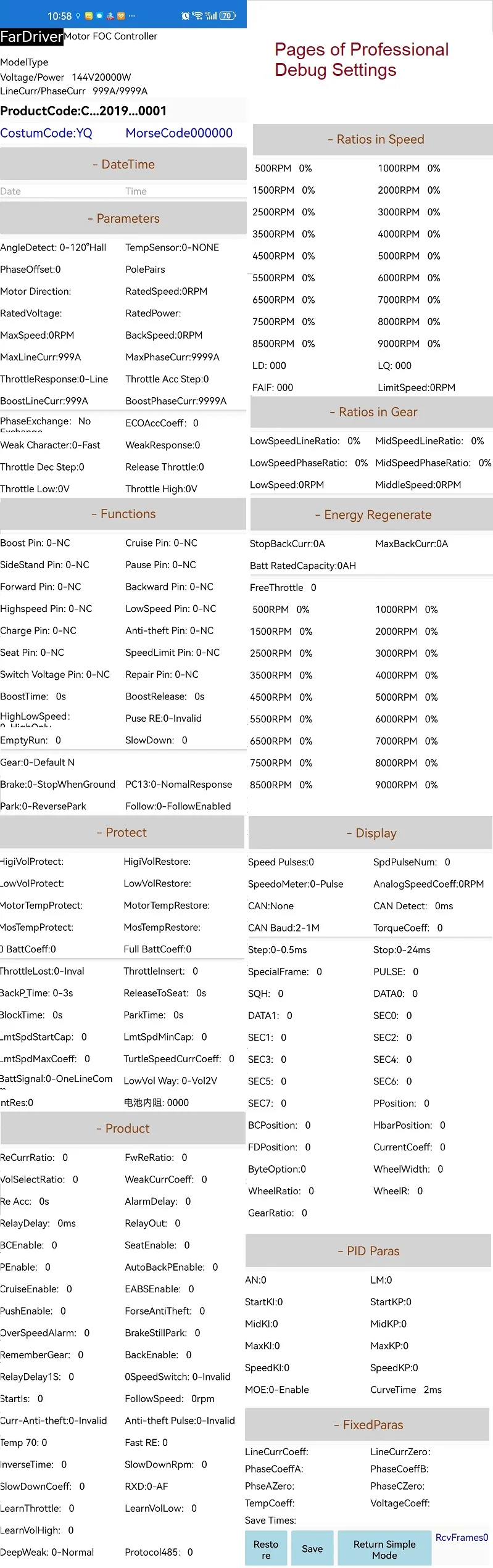

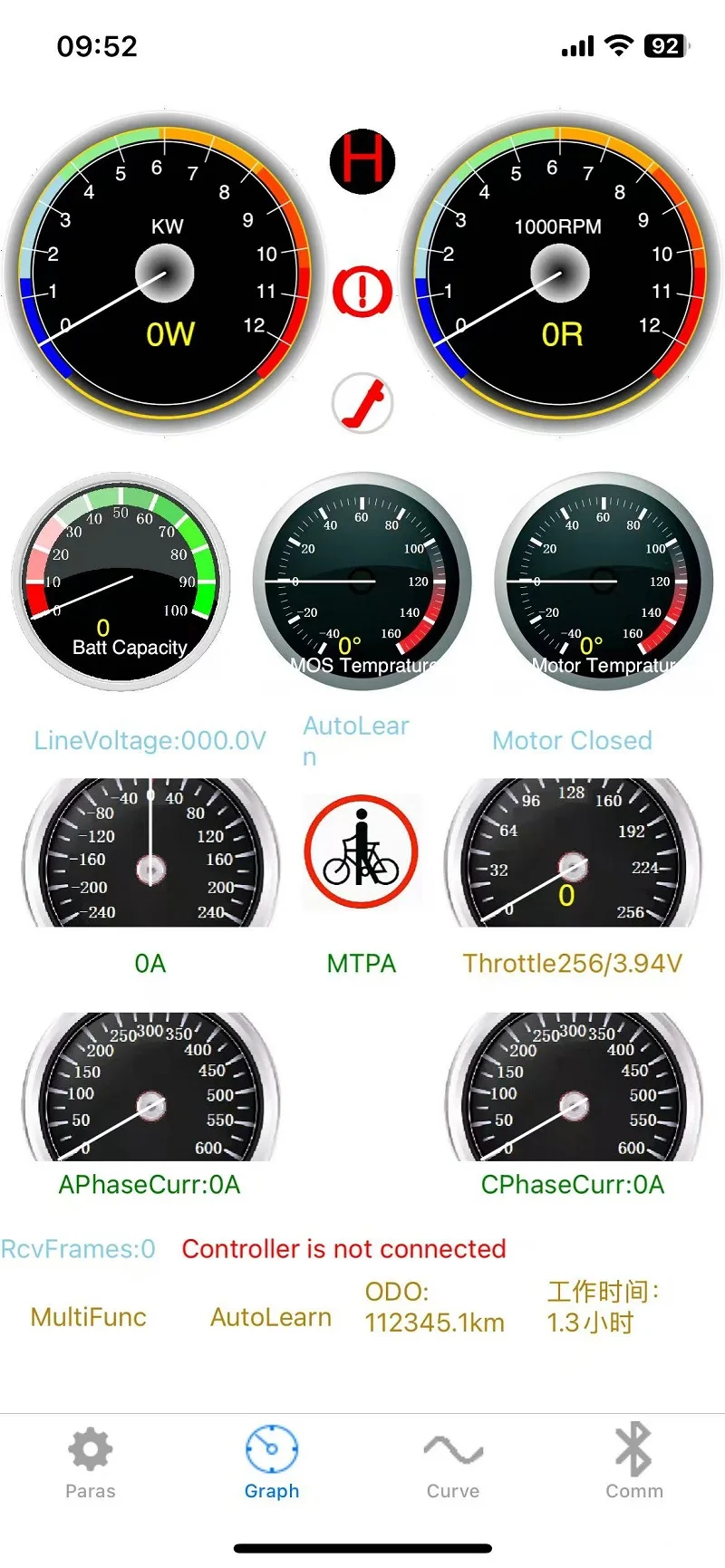

Interface of APP:
